Flat-Honing

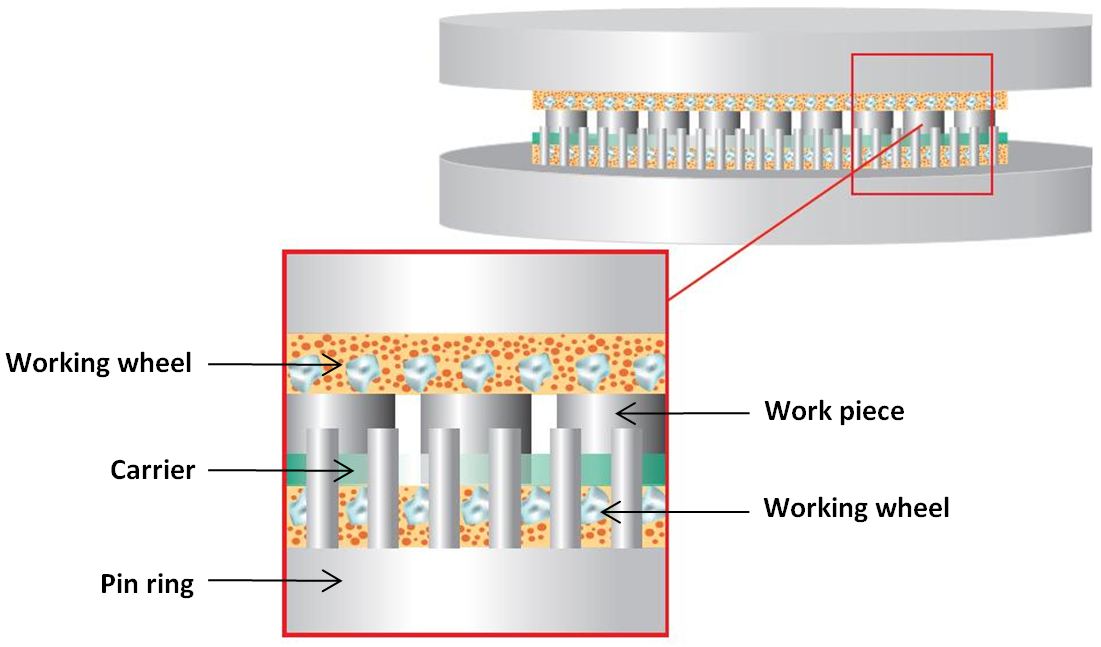

Flat-honing - also called fine-grinding - is a machining process with bonded grain. The work pieces are
inserted in carrier wheels which form planetary kinematics with the inner and outer pin ring.
The work piece is machined on the top and bottom or optionally also on one side. Large quantities
of material can be removed in one work operation, but also the most precise roughness's
and flatness's can be achieved.







Flat honing process with bonded grain using diamond or CBN working wheels.


Do you have questions about the "Flat-Honing" process?
More information can be found in our catalogue "Flat Honing - Lapping - Polishing" or ask our Stähli team.
